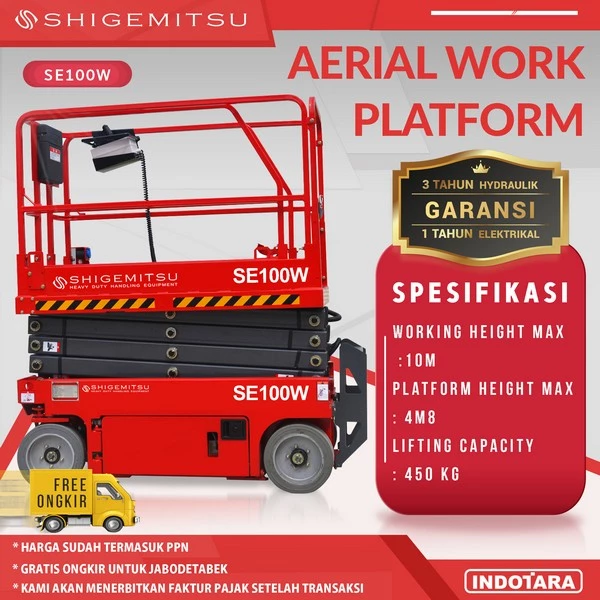

Specification of Tangga Elektrik - Aerial Work Platform Shigemitsu SE100W
SPESIFIKASI
Type : SE100w
Working height max H1 : 10m
Platform height max H2 : 4m8
(2) Outreach : 1m
Lifting Capacity : 450Kg
Weight ANSI/CSA Standard : 2125Kg
Weight CE/AUS Standard : 2520Kg
Platform Size (3)x(5)x(6) (LxWxH) : 2.3 x 1.15 x 1.1
(4) Length of Platform Extended : 3.3m
(7) Skriting Board Height : 0.172m
Stowed Size (LxW) (8) x (9) : 2.42 x 1.2
Stowed Height (10) : 2.25
Length machine with platform extended (13) : 3.5m
Height machine with platform folded (11) : 1.69m
Hydraulic tank capacity : 15L
Gradeability : 30%
Wheelbase (12) : 1.85m
Ground Clearance : 0.1m
Pothole protection Board Ground Clearance (Down) : 0.019m
Inside Rotation Radius : 0
Outside Turning Rotation : 2.12m
Load number max : 2
Raised Time : 45/30m
Traction speed : 3.4Km/h
Safe speed : 0.7Km/h
Vertical Tilt° ANSI CSA : 3
Vertical Tilt° CE/AUS : 2
Lateral Tilt° ANSI CSA : 2
Lateral Tilt° CE/AUS : 1.5
Warranty : 3 Tahun Hydraulic & 1 Tahun Elektrical
# Harga diatas sudah termasuk PPn
# Kami akan menerbitkan faktur pajak setelah transaksi.
